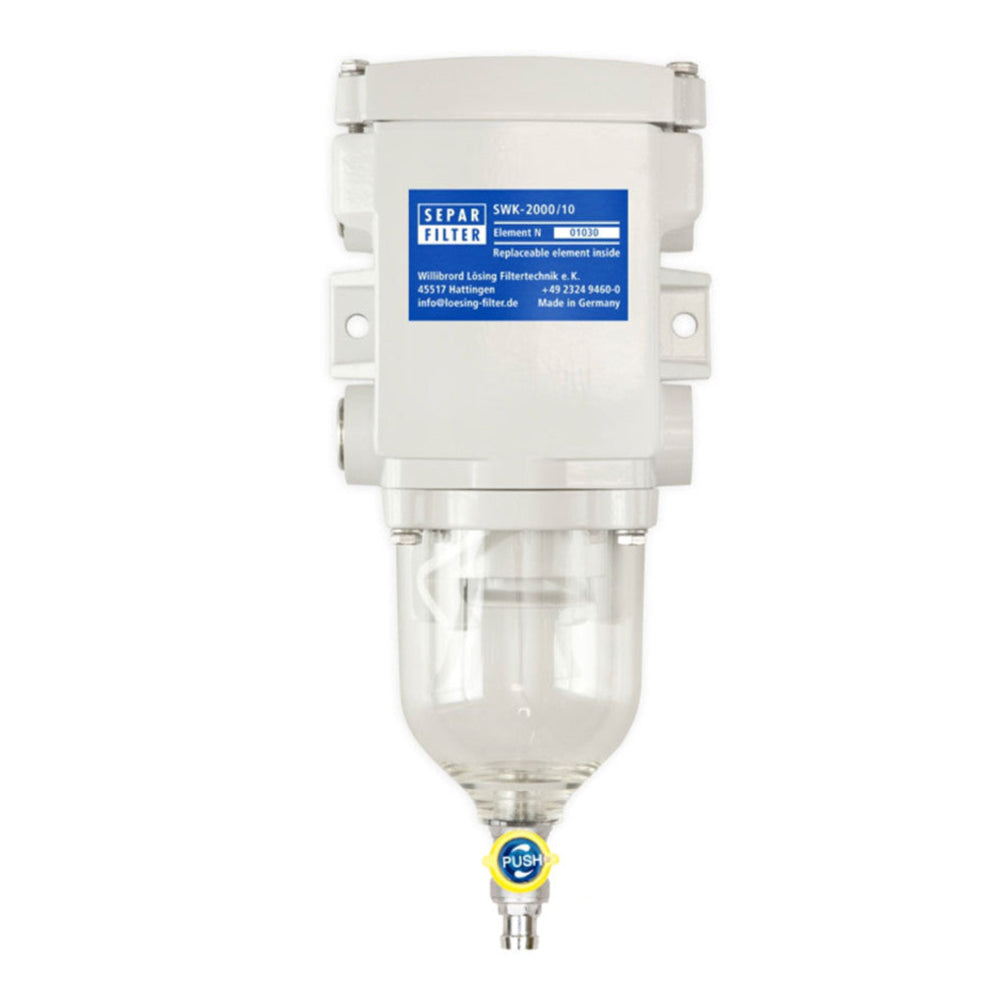

SEPAR SWK2000/10 FILTER WATER SEPARATOR

The SEPAR SWK2000/10 is a heavy-duty diesel fuel water separator for engines up to 750 HP, with very high flow and advanced filtration.

Features

• Five-stage filtration ensures 99.9% water and particulate separation
• Backflushable, reusable element for long service life and minimal downtime
• Low flow restriction preserves engine performance and reduces wear
• Multiple inlet/outlet options for flexible installation
• Compatible with diesel, biodiesel, and marine or industrial fuel systems
• Equipped with a 30 micron element (optional 10 µm or 60 µm available)

Specifications

• Flow Rate: 158 GPH / 600 LPH
• Restriction at Max Flow: 0.31 in-Hg (30 µm element)
• Ports: 7/8″-14 Straight O-ring SAE and 15 mm pipe option
• Dimensions: Height 313 mm × Width 110 mm
• Engine Capacity: Up to 750 HP

• Filter Element: 30 micron reusable
