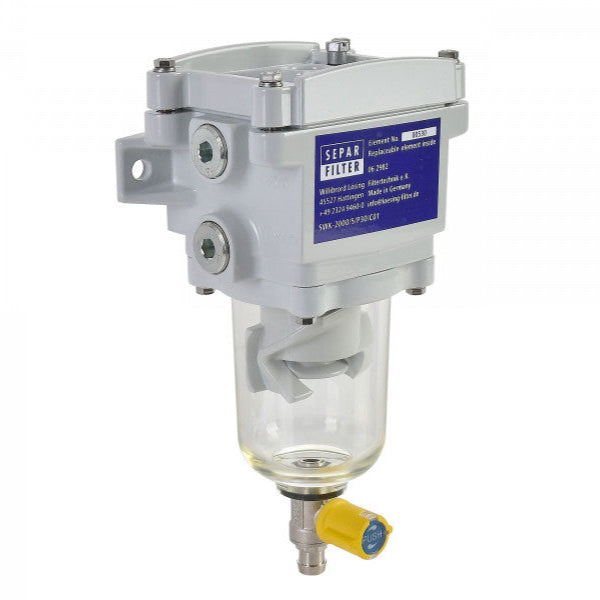

SEPAR SWK2000/ 5 FILTER WATER SEPARATOR

The SEPAR SWK2000/5 is a five-stage diesel fuel filter and water separator engineered for optimal performance, minimal pressure loss, and extended durability, ideally suited for marine and industrial engine applications.

Specifications

• Flow Rate: 79 GPH (300 LPH) / 1.32 GPM
• Filtration: 99.9% water separation (TÜV certified / SAE J1839)
• Filter Element: 30 micron – reusable & backflushable
• Pressure Drop: 0.36 psi @ 1.05 GPM
• Connections: M16×1.5 or 3/4″-16 SAE (O-ring), 12 mm ports
• Size: 140 W × 246 H × 96 D mm
• Engine Range: 6 – 400 HP
• Fuel Type: Light diesel / biodiesel
• Material: Aluminum alloy body with polycarbonate or metal bowl
• Mounting: Between tank and fuel pump intake

Features

• 99.9% water separation for clean, dry fuel
• Low restriction to protect pumps and engines
• Washable element for extended service life
• Marine-grade version with heat deflector and optional water sensor
