SEPAR
ELEMENT WATER SEPAR 0530
ELEMENT WATER SEPAR 0530
Regular price
$15.00
Regular price
Sale price
$15.00
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability

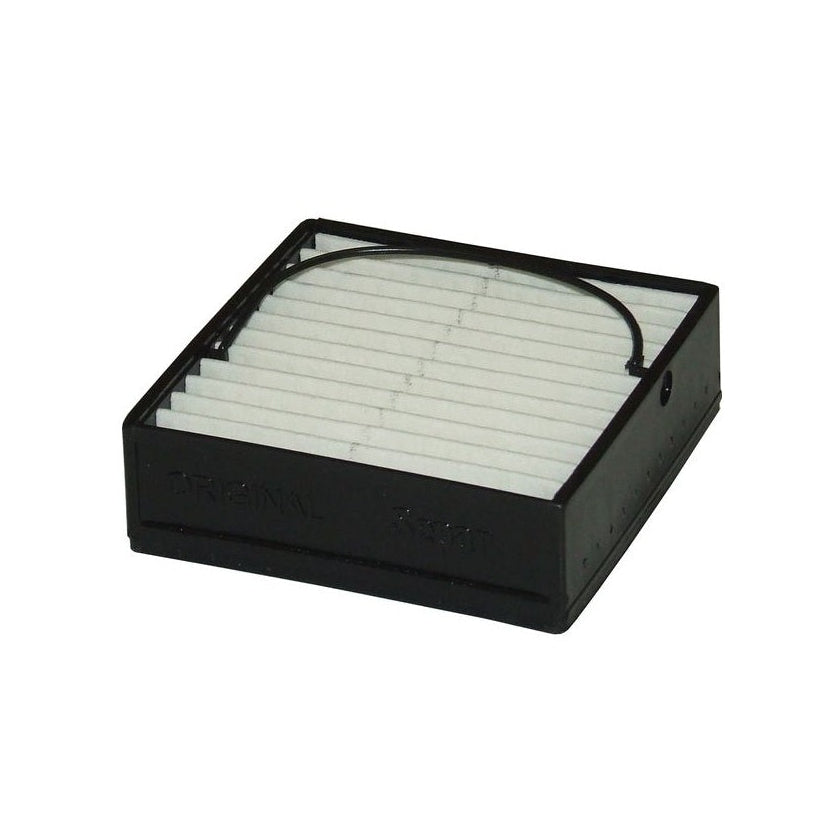

The SEPAR 0530 is a high-performance replacement element engineered specifically for the SWK-2000/5 series fuel water separators. This component serves as the final stage in a sophisticated five-stage centrifugal separation process designed to protect diesel injection systems from water contamination and particulate matter.
Technical Specifications
| Feature | Specification |
|---|---|
| Compatibility | Separ SWK-2000/5 series (including /50 and /M variants) |
| Micron Rating | 30 Microns (Standard) |
| Flow Rate | Up to 5 L/min (300 L/h) |
| Media Material | Resin-impregnated pleated cellulose |
| Efficiency | Up to 99.9% water separation |
Core Functional Features
- Hydrophobic Media: The resin-impregnated cellulose is specifically treated to repel water molecules, ensuring only pure fuel reaches the engine's high-pressure rail.
- Pleated Geometry: The advanced pleated design maximizes surface area to provide high dirt-holding capacity while maintaining a low-pressure drop across the filter.
- Backflush Compatibility: The element is designed to support the SWK-2000/5 backflushing procedure, which helps extend the operational life of the filter by clearing surface particulates.
- Chemical Resilience: Engineered to withstand the chemical properties of ultra-low sulfur diesel (ULSD), biodiesel blends, and marine-grade fuels.
Maintenance Standards
To ensure optimal performance and protect operating margins, replacement is recommended if a significant increase in vacuum suction is detected or at specified service intervals (typically between 500 and 1,000 operating hours, depending on fuel quality).
